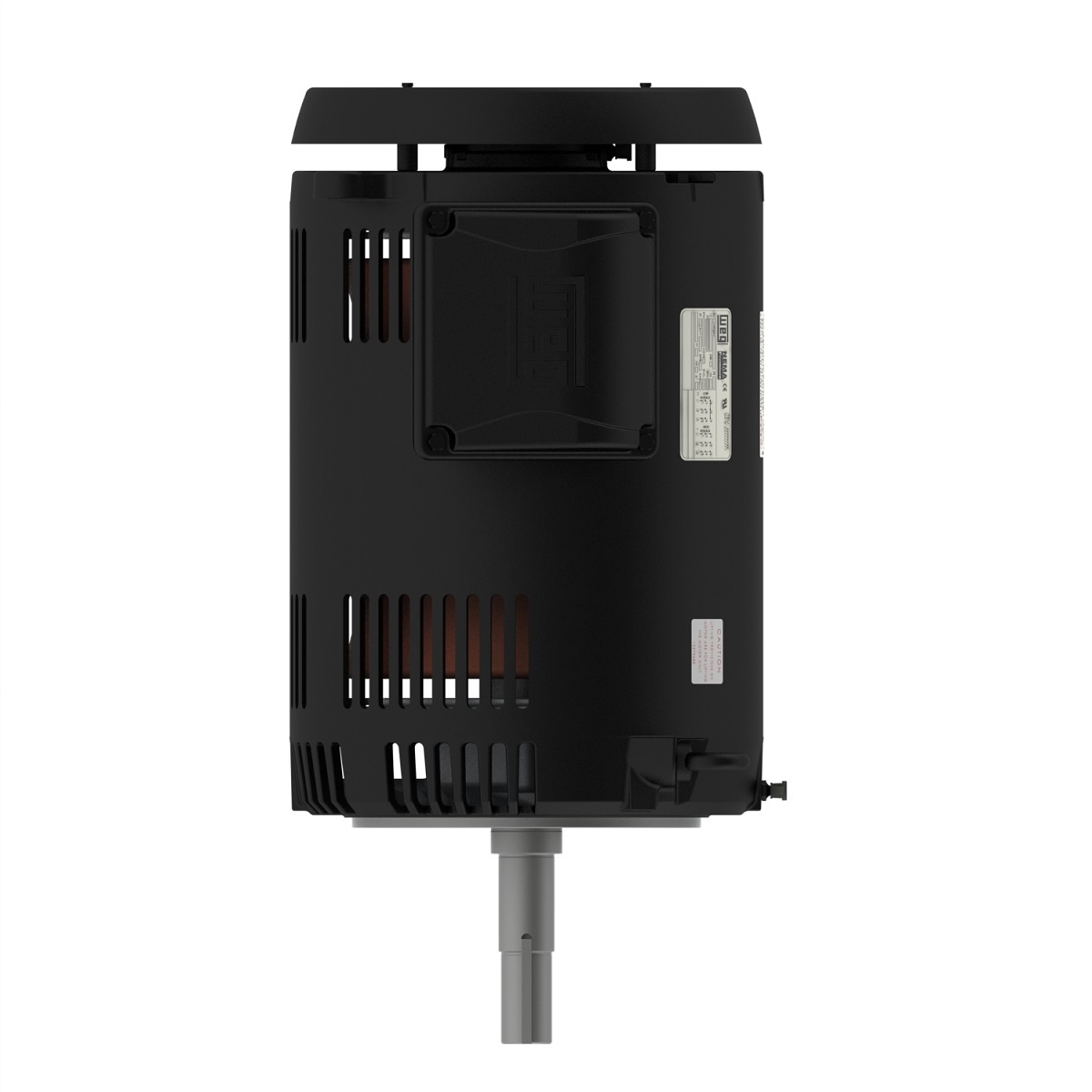

| Item | Close-Coupled Pump Motor |
| Enclosure Type | Open Dripproof |
| Frame | 213JMV |
| Hp | 10 hp |
| Phase | 3 |
| Rpm | 3600 RPM |
| Ships Factory Direct | No |
| Voltage | 575V AC |
| Altitude | 1000 m.a.s.l. |
| Ambient Temperature | -20°C to +40°C |
| Bearing Cap | Yes |
| Breakdown Torque | 280% |
| Connection Cables Quantity | 6 |
| Drip Cover | With |
| Efficiency_100% | 89.5 |
| Efficiency_50% | 88.5 |
| Efficiency_75% | 89.5 |
| Enclosure | IC01 |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Grounding Lugs | Single |
| Impregnation Method | Dip and Bake Polyester |
| L.r. Amperes | 67.5A |
| Locked Rotor Time (cold) | 39 sec. |
| Locked Rotor Time (hot) | 22 sec. |
| Locked Rotor Torque | 200% |
| Main Terminal Box Hole | 1.377" |
| Moment Of Inertia (j) | 0.4651 lbs.-sq. ft. |
| Mounting | W-6 |
| No Load Current | 4.48A |
| Output Rating | 10 hp |
| Overload Protection | No |
| Power Factor_100% | 0.85 |
| Power Factor_50% | 0.68 |
| Power Factor_75% | 0.8 |
| Rated Current | 9.92A |
| Rated Speed | 3535 RPM |
| Rated Torque | 14.9 lbs.-ft. |
| Rated Voltage | 575V |
| Resilient Base | Without |
| Screw Cap | Carbon Steel |
| Slip | 1.81% |
| Temperature Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Ship weight (kg) | 59.4 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
