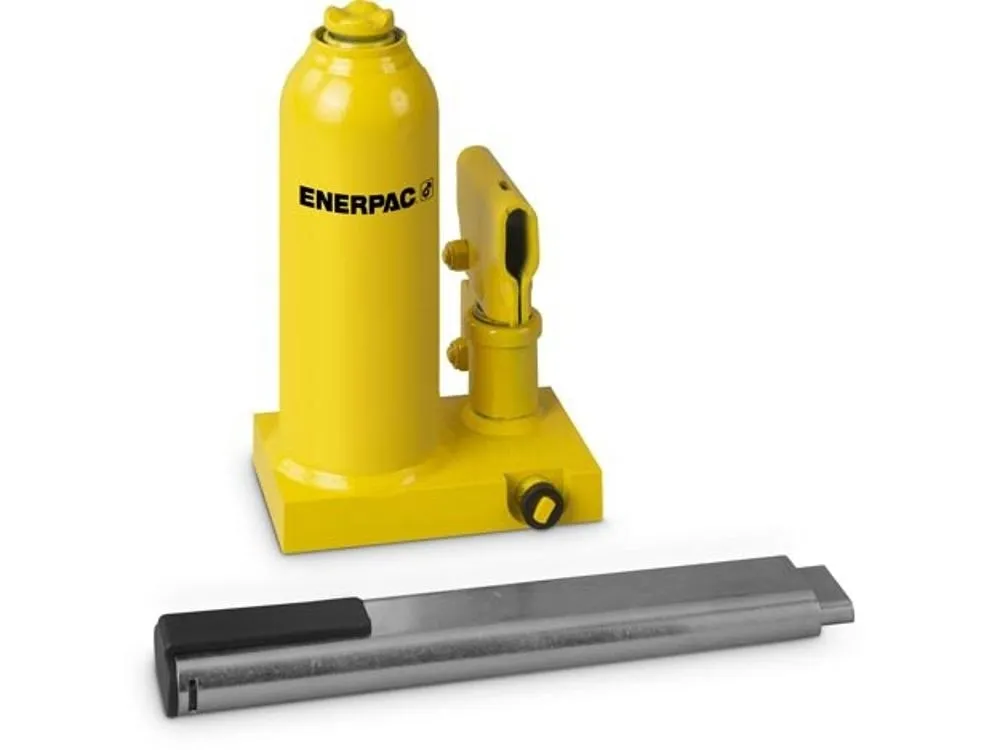

| Item | Bottle Jack |
| Application | Lift |
| Base Length | 4 29/32" |
| Base Size | 5" x 3" |
| Base Width | 2 15/16" |
| Body Material | Steel |
| Bottom Plate Length | 4 23/25" |
| Collapsed Height | 8.35" |
| Construction | Steel |
| Extended Height | 17 3/16" |
| Extension Screw Length | 3" |
| Handle Type | Lower Handle |
| Hydraulic Stroke | 5" |
| Includes | Pump Handle |
| Jack Type | Bottle Jack |
| Lifting Actuator | Manual Handle |
| Lifting Capacity | 5 ton. |
| Lifting Height Max. | 17 1/4" |
| Max. Lift Height | 17 1/4" |
| Min. Height | 8 11/32" |
| Min. Lifting Height | 6" |
| Oil Capacity | 5.41 oz. |
| Plunger Diameter | 1.14" |
| Power Source | Mechanical |
| Promotion Restriction | Not Eligible For Promotion |
| Saddle | Yes |
| Saddle Diameter | 1 3/25" |
| Stroke | 5 29/32" |
| Type | Hydraulic |
| Standards | ANSI PALD, CE CERTIFIED |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 35.56 |
| Country of Origin | ES |
